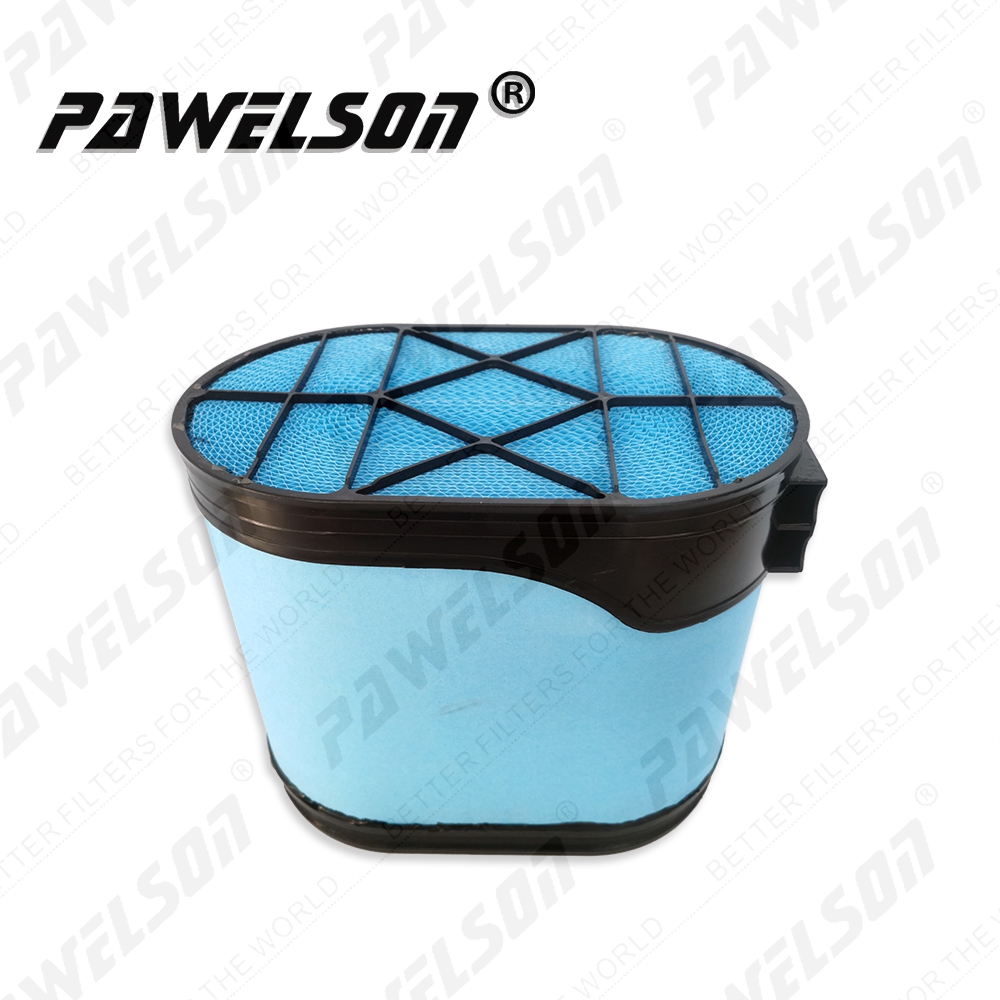

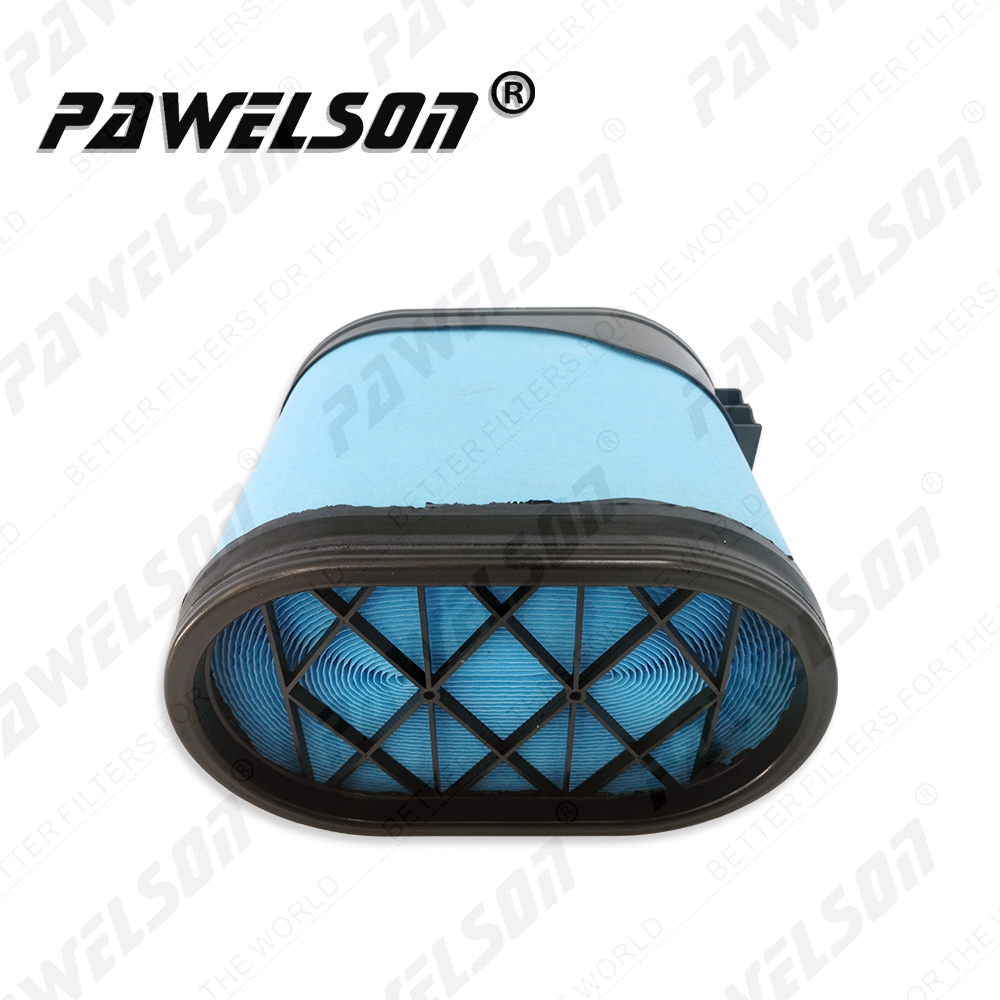

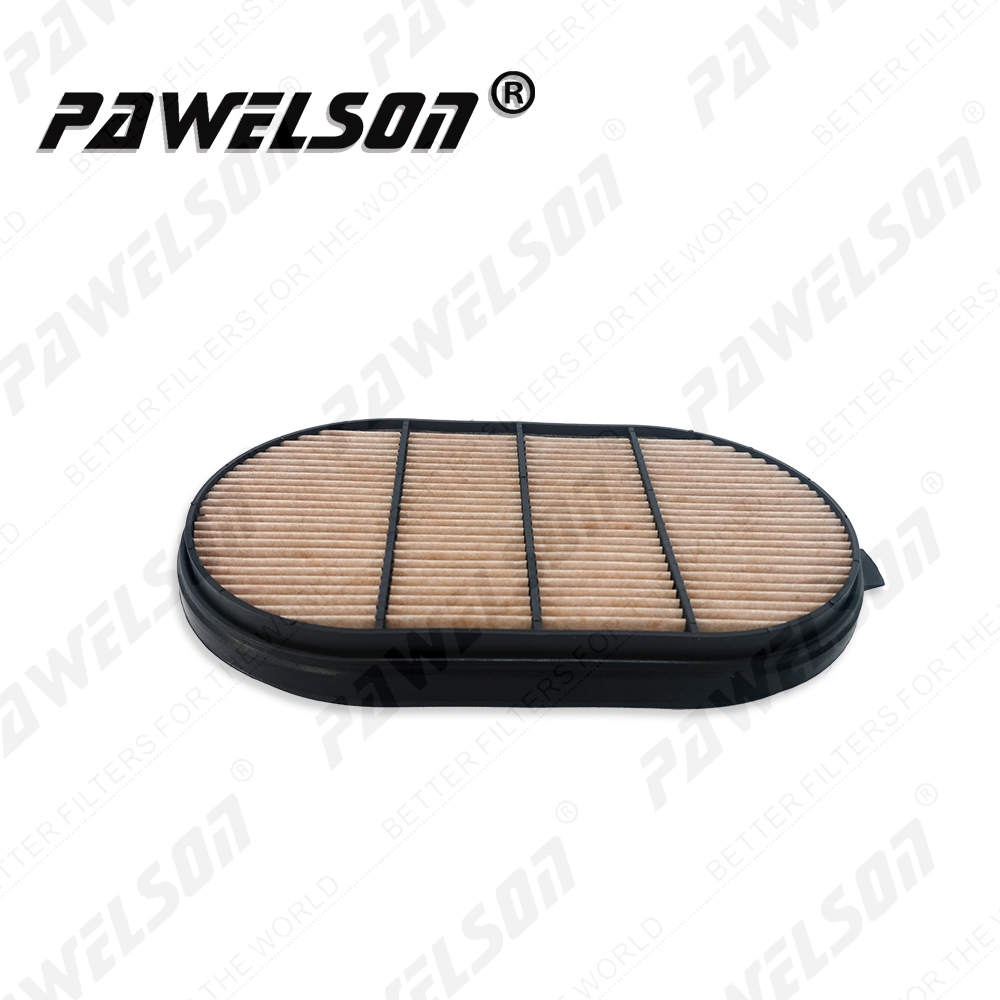

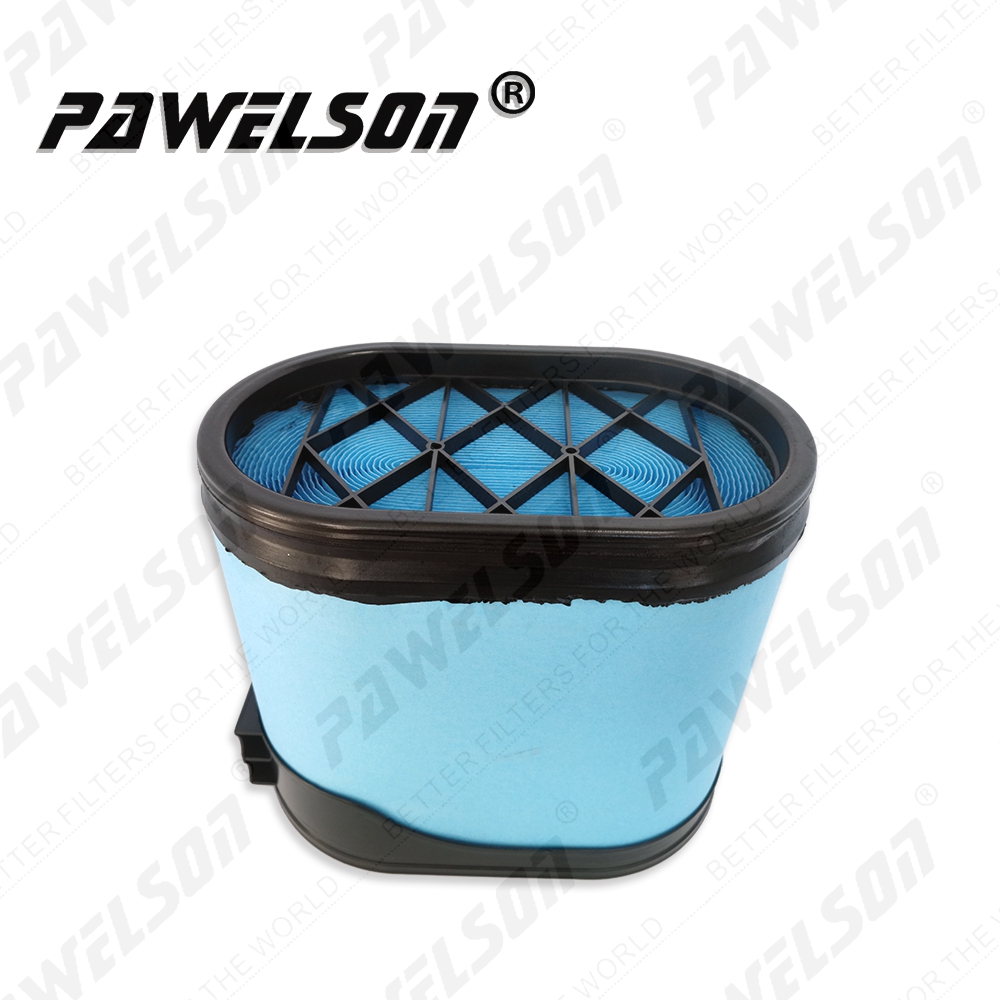

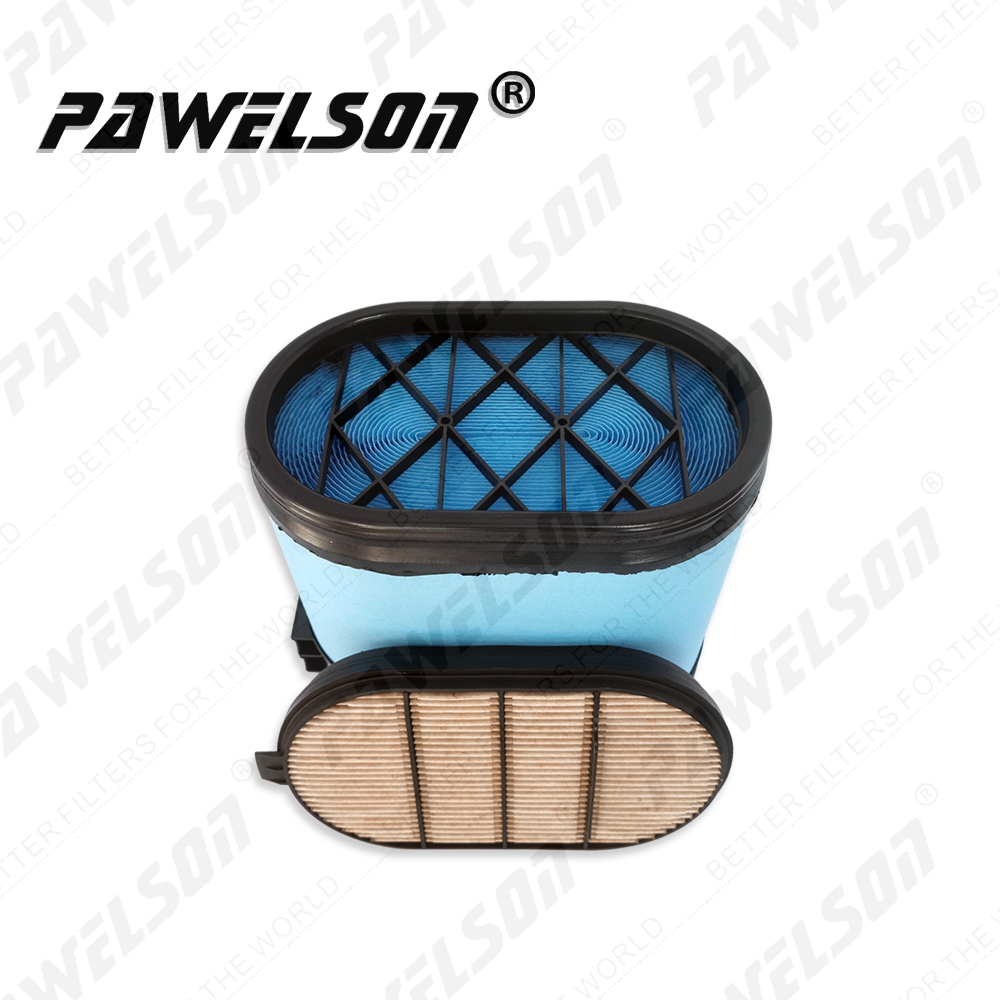

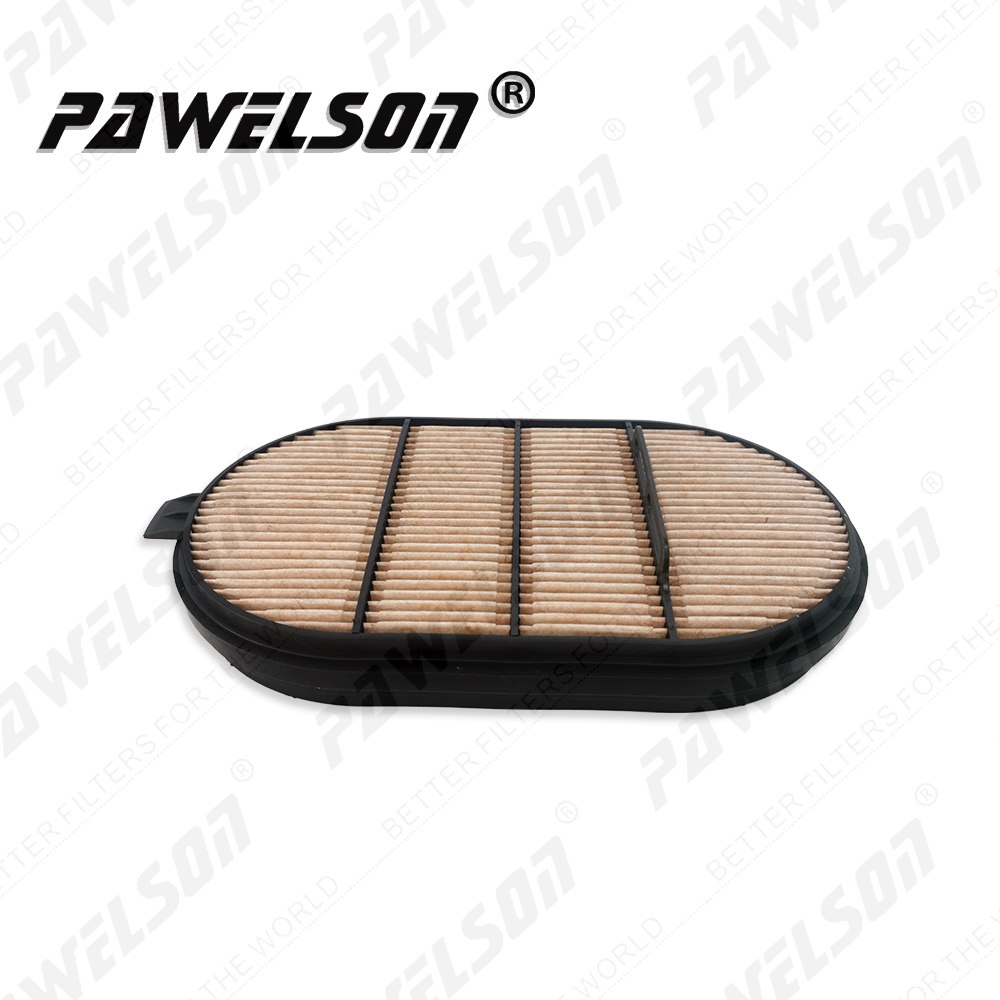

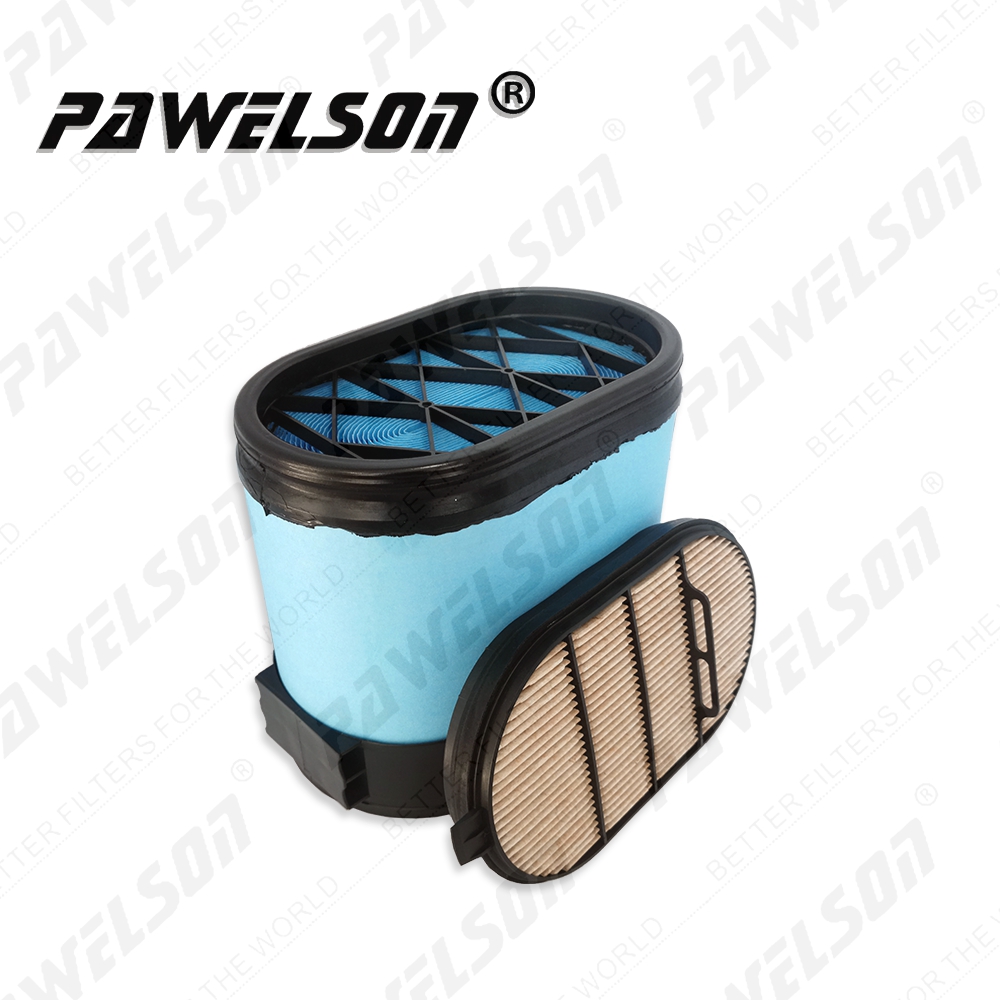

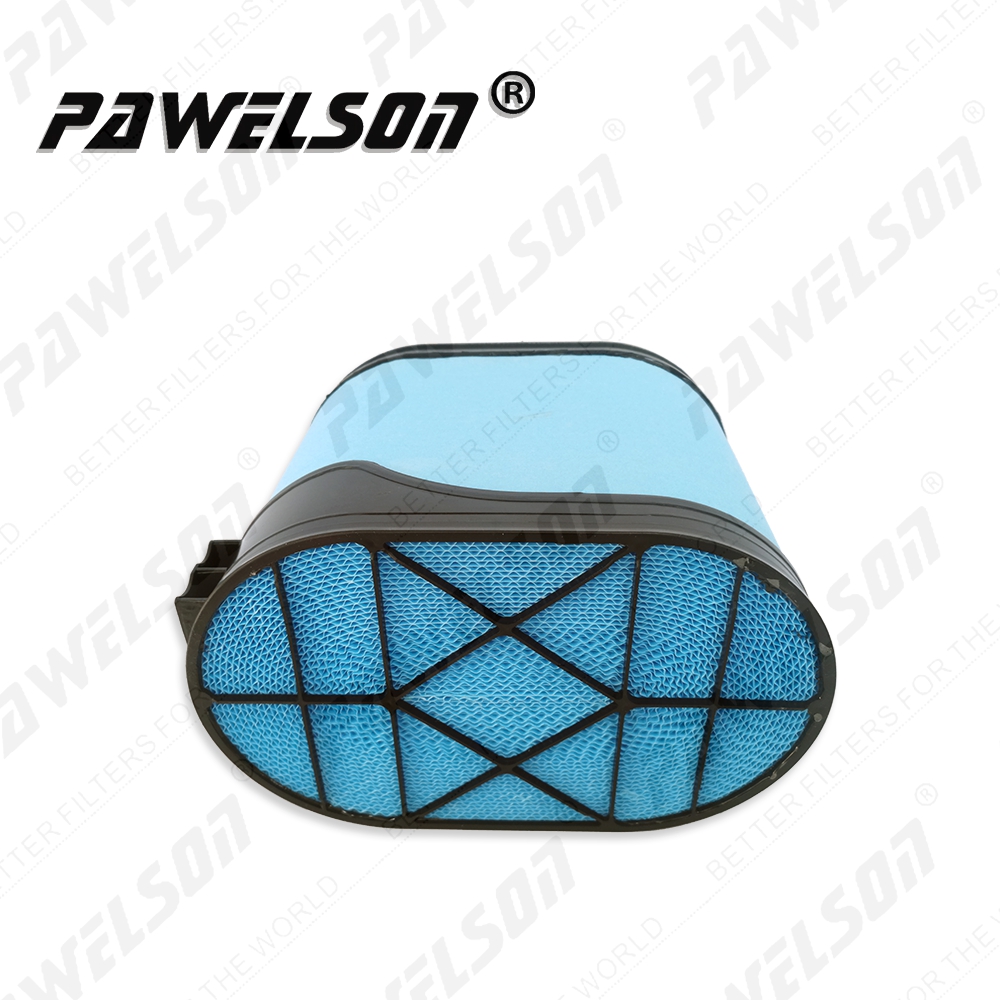

SK-1259AB P608676 P605538 P61560 High quality bus air filter for OEM 10294938 21604540 090007936 4286479M2 69041542 0040947504 42569259

Short Description:

QS NO.: SK-1259A

OEM NO. : LIEBHERR 10294938 CLASS 21604540 DEUTZ FAHR 090007936 MASSEY FERGUSON 4286479M2 SANDVIC 69041542 Mercedes-Benz 0040947504 IVECO 42569259

CROSS  REFERENCE: P608676 P605538 AF4206

APPLICATION:  BUS EXCAVATOR AGRICULTURE MACHINERY

LENGTH:  334/208 341/(337/212) (MM)

WIDTH:  297/171 (MM)

OVERALL HEIGHT:  287 (MM)



QS NO.: SK-1259B

OEM NO. : JOHN DEERE F071151 IVECO 5801699114 MAN 4504057100 LIEBHERR 10294939 MASSEY FERGUSON 4286474M1

CROSS  REFERENCE: AF4199 P601560 CF3240

APPLICATION:  BUS EXCAVATOR AGRICULTURE MACHINERY

LENGTH: 332.5/317/310(MM)

WIDTH: 188/181 (MM)

OVERALL HEIGHT: 40/43/59 (MM)


Product Detail

Product Tags

What are the advantages of an air filter?

P608676 P605538 P61560 High quality bus air filter for OEM 10294938 21604540 090007936 4286479M2 69041542 0040947504 42569259



The engine needs to suck in a lot of air during the working process. If the air is not filtered, the dust suspended in the air will be sucked into the cylinder, which will accelerate the wear of the piston group and the cylinder. Larger particles entering between the piston and the cylinder can cause serious “pulling the cylinder”, which is especially serious in dry and sandy working environments. The air filter is installed in front of the carburetor or intake pipe to filter out dust and sand in the air, ensuring that sufficient and clean air enters the cylinder
According to the filtration principle, air filters can be divided into filter type, centrifugal type, oil bath type and composite type.
During maintenance, the paper filter element must not be cleaned in oil, otherwise the paper filter element will fail, and it is easy to cause a speeding accident. During maintenance, only the vibration method, the soft brush removal method (to brush along the wrinkle) or the compressed air blowback method can only be used to remove the dust and dirt attached to the surface of the paper filter element. For the coarse filter part, the dust in the dust collecting part, the blades and the cyclone pipe should be removed in time. Even if it can be carefully maintained every time, the paper filter element cannot fully restore its original performance, and its air intake resistance will increase. Therefore, generally, when the paper filter element needs to be maintained for the fourth time, it should be replaced with a new filter element. If the paper filter element is cracked, perforated, or the filter paper and end cap are degummed, they should be replaced immediately.

Product description

SK-1259AB P608676 P605538 P61560 High quality bus air filter for OEM 10294938 21604540 090007936 4286479M2 69041542 0040947504 42569259

A:

QSNO. SK-1259A
OEM NO. LIEBHERR 10294938 CLASS 21604540 DEUTZ FAHR 090007936 MASSEY FERGUSON 4286479M2 SANDVIC 69041542 Mercedes-Benz 0040947504 IVECO 42569259
CROSS REFERENCE P608676 P605538 AF4206
APPLICATION BUS EXCAVATOR AGRICULTURE MACHINERY
LENGTH 334/208 341/(337/212) (MM)
WIDTH 297/171 (MM)
OVERALL HEIGHT 287 (MM)

B:

QSNO. SK-1259B
OEM NO. JOHN DEERE F071151 IVECO 5801699114 MAN 4504057100 LIEBHERR 10294939 MASSEY FERGUSON 4286474M1
CROSS REFERENCE AF4199 P601560 CF3240
APPLICATION BUS EXCAVATOR AGRICULTURE MACHINERY
LENGTH 332.5/317/310(MM)
WIDTH 188/181 (MM)
OVERALL HEIGHT 40/43/59 (MM)
